Categories and Collections

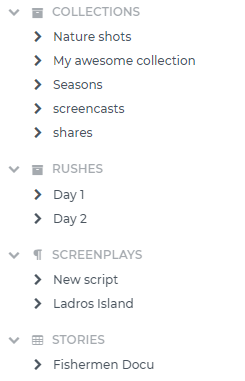

In this section we discuss the usage of the Category and the EditorialObject. These represents a way of organising your workspace into logical units such as shooting days, episodes, topics, customers, etc.

There are many different types of EditorialObject. Learn more about the different types here.

Manage EditorialObjects

Create an EditorialObject

To create an EditorialObject, use the following call.

POST /production/{prId}/eo

This call is being used across the system for for generating different entities, within a specific production.

Details
Description

Based on the body of the request, it can be used for creating a notebook, draft, story, story part, episode or a scene.

Parameters
Path Parameters
Name Description Required Type

prId

ID of the production.

✔

Long
Body Parameters
Name Description Required Type

body

Body of the request.

✘

Object

body

Field Name

Required

Type

Description

Format
Return Type

EditorialObject

The EditorialObject this request is for.

Field Name Required Type Description Format

abstract

✘

String

alternativeTitle

✘

String

Can contain a second title (with the title field being the primary title)

category

✘

String

categoryId

✘

Long

The id of the category we belong to

int64

created

✘

Date

The time when this resource was created

date-time

createdBy

✘

String

The request or process that created this resource

creatorId

✘

Long

The id of the user who created this resource

int64

customFields

✘

CustomFields

description

✘

String

Plain text description

extent

✘

String

funnel

✘

String

Field which can be interpreted as a subtype (besides objectType). Only the objectType determines the structure of the EditorialObject, the funnel does not. It is meant for applications to indicate the EditorialObject is to be interpreted in a specific way.

id

✔

Long

The id of this resource

int64

includeCategoryName

✘

Boolean

includeChildren

✘

Boolean

includeEdl

✘

Boolean

includeParent

✘

Boolean

lastUpdated

✘

Date

The time when this resource was last updated

date-time

modifiedBy

✔

String

The request or process responsible for the last update of this resource

objectType

✘

String

The data model type or class name of this resource

parent

✘

EditorialObject

parentId

✘

Long

The id of the parent EditorialObject

int64

productionId

✘

Long

int64

status

✘

String

Status of the EditorialObject. Application-specific implementation.

subObjects_index

✘

Integer

Order of this EditorialObject inside its parent. Gaps are allowed.

int32

systemFields

✘

CustomFields

title

✘

String

Contains the primary title of the EditorialObject.

version

✔

Long

The version of this resource, used for Optimistic Locking

int64
Content Type

  • application/json

Responses
Table 1. http response codes
Code Description Datatype

201

The request was successful new editorial object was created.

EditorialObject

403

The user needs rights depending on the type of editorial object. Notebook needs COLLECTION_BUILDER_EDIT rights, Episode needs SCREENPLAY_BUILDER_EDIT rights, Story needs STORY_BUILDER_EDIT rights.

ForbiddenError

404

The production was not found.

NotFoundError

The body of the call’s objectType (and optionally funnel) will determine what kind of EditorialObject is created.

Besides an objectType, we typically always give the EditorialObject at least a title.

So, to create a Notebook, the body would look like:

{
    "objectType": "Notebook",
    "title": "My First collection group"
}

Use objectType:"Story" to create a Story or objectType:"Episode" to create an Episode.

Create a child EditorialObject

Some EditorialObjects can be the child of others. The objectType determines if an EditorialObject can be a child of another or not:

To create an EditorialObject which is the child of another EditorialObject, pass the id of the parent as parentId in the body of the call:

{
    "objectType": "Draft",
    "title": "My First Subcollection",
    "parentId": {{notebookId}}
}

Create an EditorialObject in a specific Category

To create an EditorialObject in a particular Category, you can provide the categoryId in the body of the call:

{
    "objectType": "Notebook",
    "title": "My First collection group",
    "categoryId": {{categoryId}}
}

If no categoryId is provided, the objectType will determine which Category the EditorialObject is created in. Learn more here.

Remove an EditorialObject

DELETE /production/{prId}/eo/{id}

Query for removing a collection.

Details
Description

If the collection has attached material, you will need to add deleteAssemble=true for the call to succeed.

Parameters
Path Parameters
Name Description Required Type

prId

ID of the production.

✔

Long

id

ID of the editorial object.

✔

Long
Return Type

EditorialObject

The EditorialObject this request is for.

Field Name Required Type Description Format

abstract

✘

String

alternativeTitle

✘

String

Can contain a second title (with the title field being the primary title)

category

✘

String

categoryId

✘

Long

The id of the category we belong to

int64

created

✘

Date

The time when this resource was created

date-time

createdBy

✘

String

The request or process that created this resource

creatorId

✘

Long

The id of the user who created this resource

int64

customFields

✘

CustomFields

description

✘

String

Plain text description

extent

✘

String

funnel

✘

String

Field which can be interpreted as a subtype (besides objectType). Only the objectType determines the structure of the EditorialObject, the funnel does not. It is meant for applications to indicate the EditorialObject is to be interpreted in a specific way.

id

✔

Long

The id of this resource

int64

includeCategoryName

✘

Boolean

includeChildren

✘

Boolean

includeEdl

✘

Boolean

includeParent

✘

Boolean

lastUpdated

✘

Date

The time when this resource was last updated

date-time

modifiedBy

✔

String

The request or process responsible for the last update of this resource

objectType

✘

String

The data model type or class name of this resource

parent

✘

EditorialObject

parentId

✘

Long

The id of the parent EditorialObject

int64

productionId

✘

Long

int64

status

✘

String

Status of the EditorialObject. Application-specific implementation.

subObjects_index

✘

Integer

Order of this EditorialObject inside its parent. Gaps are allowed.

int32

systemFields

✘

CustomFields

title

✘

String

Contains the primary title of the EditorialObject.

version

✔

Long

The version of this resource, used for Optimistic Locking

int64
Content Type

  • application/json

Responses
Table 2. http response codes
Code Description Datatype

200

The request was successful.

EditorialObject

403

The user needs rights depending on the type of editorial object. Notebook needs COLLECTION_BUILDER_EDIT rights, Episode needs SCREENPLAY_BUILDER_EDIT rights, Story needs STORY_BUILDER_EDIT rights.

ForbiddenError

404

The production or editorial object was not found.

NotFoundError

For legacy reasons, it is necessary to add the query parameter deleteAssemble=true parameter to the call, or it won’t succeed.

For example:

{baseUrl}/production/\{prId}/eo/\{Id}?deleteAssemble=true

Patch an EditorialObject

To change particular properties of an Editorial Object, use JSON Patch.

PATCH /production/{prId}/eo/{id}

Adjust the collection using a RFC6902-compliant PATCH action. This allows changing only particular properties of the collection while leaving the other properties intact.

Details
Description
Parameters
Path Parameters
Name Description Required Type

prId

ID of the production.

✔

Long

id

ID of the collection.

✔

Long
Body Parameters
Name Description Required Type

body

✘

Object

body

Field Name

Required

Type

Description

Format
Query Parameters
Name Description Required Type

version

Version number used to verify the optimistic lock. Not required, but highly advisable parameter. Leaving it out will disable optimistic locking and you could overwrite other people’s changes.

✘

Long
Return Type

MaterialInstance

Field Name Required Type Description Format

alternateBackupLocation

✘

String

alternateBackupMetadata

✘

Object

alternateBackupType

✘

String

archive1Location

✘

String

archive1Metadata

✘

Object

archive1Type

✘

String

archive2Location

✘

String

archive2Metadata

✘

Object

archive2Type

✘

String

archive3Location

✘

String

archive3Metadata

✘

Object

archive3Type

✘

String

backupCompleted

✘

Date

date-time

backupStarted

✘

Date

date-time

businessKey

✘

String

created

✘

Date

The time when this resource was created

date-time

createdBy

✘

String

The request or process that created this resource

creatorId

✘

Long

The id of the user who created this resource

int64

deleted

✘

Boolean

deletedTimestamp

✘

Date

date-time

filename

✘

String

fingerprints

✘

Set of string

growing

✘

Boolean

id

✔

Long

The id of this resource

int64

lastUpdated

✘

Date

The time when this resource was last updated

date-time

location

✘

String

locationMetadata

✘

Object

md5

✘

String

md5Partials

✘

String

md5VerificationCompleted

✘

Date

date-time

md5VerificationStatus

✘

String

Enum: NOT_VERIFIED, VERIFIED, REJECTED,

mediaObjectId

✘

Long

int64

mediaObjectType

✘

String

Enum: IMAGE, DOCUMENT, PENDING, AUDIO, VIDEO, SNIPPET, PACKAGE,

metadata

✘

Boolean

modifiedBy

✔

String

The request or process responsible for the last update of this resource

moiType

✘

String

Enum: RAW, PROXY, EDL, SHOTSTITCH, STITCH, THUMB, THUMB_SHOT, THUMB_SIXTY, WAVEFORM, AUDIO_MONO, AUDIO_SPEECH, VOLDEMORT_XML, ATTACHMENT, HDR_PROXY, MEZZANINE_PROXY,

mxfReport

✘

Boolean

objectType

✘

String

The data model type or class name of this resource

onAlternateBackup

✘

Boolean

onAlternateBackupTimestamp

✘

Date

date-time

onArchive1

✘

Boolean

onArchive1Timestamp

✘

Date

date-time

onArchive2

✘

Boolean

onArchive2Timestamp

✘

Date

date-time

onArchive3

✘

Boolean

onArchive3Timestamp

✘

Date

date-time

onBackup

✘

Boolean

onBackupTimestamp

✘

Date

date-time

onFlow

✘

Boolean

onFlowTimestamp

✘

Date

date-time

onsite

✘

Boolean

pathOnCard

✘

String

pattern

✘

String

productionId

✘

Long

int64

removeFromQuota

✘

Boolean

shouldBeOnAlternateBackup

✘

Boolean

shouldBeOnAlternateBackupTimestamp

✘

Date

date-time

shouldBeOnBackup

✘

Boolean

shouldBeOnBackupTimestamp

✘

Date

date-time

shouldBeOnFlow

✘

Boolean

shouldBeOnFlowTimestamp

✘

Date

date-time

size

✘

Long

int64

tracks

✘

Set of Track

transferDetails

✘

TransferDetails

uid

✘

String

uploading

✘

Boolean

version

✔

Long

The version of this resource, used for Optimistic Locking

int64

volumeLocations

✘

List of VolumeLocation

zone

✘

String
Content Type

  • application/json

Responses
Table 3. http response codes
Code Description Datatype

200

The request was successful.

MaterialInstance

403

The user needs rights depending on the type of editorial object. Notebook needs COLLECTION_BUILDER_EDIT rights, Episode needs SCREENPLAY_BUILDER_EDIT rights, Story needs STORY_BUILDER_EDIT rights.

ForbiddenError

404

The production, media object or material instance was not found.

NotFoundError

409

The version in the update object does not match with the version stored causing an optimistic lock.

ConflictError

Body example:

{
  "patch": [
    {
      "op": "add",
      "path": "/customFields/MyCustomField",
      "value": {
        "value": "MyCustomFieldValue",
        "label": "The label of this custom field"
      }
    }
  ]
}

Listing and searching EditorialObjects

GET /production/{prId}/eo

The call for querying available collections attached to the production.

Details
Description

On success, a list of available collections for a specific production is returned.

Parameters
Path Parameters
Name Description Required Type

prId

ID of the production.

✔

Long
Query Parameters
Name Description Required Type

includeProperties

Use this parameter to adjust the value of the return object. Meaning, you can set the properties you wish to retrieve in order to keep the response succinct. For example includeProperties=title,sceneHeading,version,status.

✘

List of String
Return Type

String

Content Type

  • application/json

Responses
Table 4. http response codes
Code Description Datatype

200

The request was successful.

String

403

The user needs PRODUCTION_VIEW rights.

ForbiddenError

404

The production was not found.

NotFoundError
As for all listing calls, Paging is supported.

The result of the above call will be a list of EditorialObjects.

Filter

EditorialObjects can be queried by means of filter query fq parameters. The following are supported:

Query parameter Description

type

filter by type (Notebook, Draft, Episode, Scene, Story, StoryPart)

funnel

filter by funnel

title

filter by title or the use the case-insensitive variant

customFields

filter by customFields

systemFields

filter by systemFields

status

filter collections with a given status (NORMAL, ACTIVE, ARCHIVED, DELETED)

category

filter collections within a specific category

production

filter by production id

production.subscription.account

filter by account id

parent

filter collections which are child of the given parent collection id

Example

/api/production/12345/eo?fq=type:Notebook&fq=title_lc:"My Notebo*"&fq=isRoot:true&fq=categoryId:12345

Categories

Categories give you sections to divide your workspace into. All EditorialObjects belong to exactly one Category.

Learn more about the different types of category here.

The image below shows a Limecraft Flow UI Library sidebar with (in order of appearance) the DEFAULT_NOTEBOOK (labelled 'Collections'), a USER_DEFINED category called 'Rushes', the DEFAULT_EPISODE (labelled 'Screenplays`) and the DEFAULT_STORY (labelled Stories).

cat types

List the available categories

GET /production/{prId}/category

Query for getting a list of all available categories attached to the production.

Details
Description

On success, a list of existing categories for a specific production is returned.

Parameters
Path Parameters
Name Description Required Type

prId

ID of the production.

✔

Long
Query Parameters
Name Description Required Type

fq

Query parameter to filter the response e.g.: fq=type:(UNASSIGNED USER_DEFINED DEFAULT_NOTEBOOK DEFAULT_EPISODE DEFAULT_STORY) .

✘

List of String
Return Type

Category

Field Name Required Type Description Format

created

✘

Date

The time when this resource was created

date-time

createdBy

✘

String

The request or process that created this resource

creatorId

✘

Long

The id of the user who created this resource

int64

description

✘

String

id

✔

Long

The id of this resource

int64

includeRoles

✘

Boolean

index

✘

Integer

int32

lastUpdated

✘

Date

The time when this resource was last updated

date-time

modifiedBy

✔

String

The request or process responsible for the last update of this resource

name

✘

String

objectType

✘

String

The data model type or class name of this resource

productionId

✘

Long

int64

roles

✘

Set of Role

type

✘

String

Enum: UNASSIGNED, USER_DEFINED, DEFAULT_NOTEBOOK, DEFAULT_EPISODE, DEFAULT_STORY,

version

✔

Long

The version of this resource, used for Optimistic Locking

int64
Content Type

  • application/json

Responses
Table 5. http response codes
Code Description Datatype

200

The request was successful.

Category

403

The user needs PRODUCTION_VIEW rights.

ForbiddenError

404

The production was not found.

NotFoundError

Attach clips to an EditorialObject

An important aspect of an EditorialObject is that we can attach clips to it. At the moment we only support attaching clips to leaf-collections (an EditorialObject without children).

Attach a clip

To attach one or more Annotations to the EditorialObject, use the following call:

POST /production/{prId}/eo/{id}/attach

Query for attaching a clip to the collection.

Details
Description

We expect the id(s) of the media object annotations in the request body.

Parameters
Path Parameters
Name Description Required Type

prId

ID of the production.

✔

Long

id

ID of the collection.

✔

Long
Body Parameters
Name Description Required Type

long

IDs of one or more media object annotations to be attached.

✘

List of long

long

Return Type

EditorialObject

The EditorialObject this request is for.

Field Name Required Type Description Format

abstract

✘

String

alternativeTitle

✘

String

Can contain a second title (with the title field being the primary title)

category

✘

String

categoryId

✘

Long

The id of the category we belong to

int64

created

✘

Date

The time when this resource was created

date-time

createdBy

✘

String

The request or process that created this resource

creatorId

✘

Long

The id of the user who created this resource

int64

customFields

✘

CustomFields

description

✘

String

Plain text description

extent

✘

String

funnel

✘

String

Field which can be interpreted as a subtype (besides objectType). Only the objectType determines the structure of the EditorialObject, the funnel does not. It is meant for applications to indicate the EditorialObject is to be interpreted in a specific way.

id

✔

Long

The id of this resource

int64

includeCategoryName

✘

Boolean

includeChildren

✘

Boolean

includeEdl

✘

Boolean

includeParent

✘

Boolean

lastUpdated

✘

Date

The time when this resource was last updated

date-time

modifiedBy

✔

String

The request or process responsible for the last update of this resource

objectType

✘

String

The data model type or class name of this resource

parent

✘

EditorialObject

parentId

✘

Long

The id of the parent EditorialObject

int64

productionId

✘

Long

int64

status

✘

String

Status of the EditorialObject. Application-specific implementation.

subObjects_index

✘

Integer

Order of this EditorialObject inside its parent. Gaps are allowed.

int32

systemFields

✘

CustomFields

title

✘

String

Contains the primary title of the EditorialObject.

version

✔

Long

The version of this resource, used for Optimistic Locking

int64
Content Type

  • application/json

Responses
Table 6. http response codes
Code Description Datatype

200

The request was successful.

EditorialObject

403

The user needs PRODUCTION_VIEW rights and the collection needs VIEW rights.

ForbiddenError

404

The production or editorial object was not found.

NotFoundError

The body of the call should be a list of Annotation ids:

[12093, 93903]

After attaching an Annotation to an EditorialObject, the Annotations in the index will get some additional properties set.

For example, the result of GET /api/production/{productionId}/an/search?q=objectId:{annotationId} will contain among others the following fields related to the attach to an EditorialObject:

{
  "attachedEditorialObjectId": [
    "181445"
  ],
  "clipOrSubclipHasAttachedEditorialObjectId": [
    "181445"
  ],
  "attachedEditorialObjectInfo": [
    "Draft;;181445"
  ],
  "clipOrSubclipHasAttachedEditorialObjectInfo": [
    "Draft;;181445"
  ],
  "attachedEditorialObjectParentId": [
    181439
  ],
  "clipOrSubclipHasAttachedEditorialObjectParentId": [
    181439
  ],
  "clipHasAttachedEditorialObjectId": [
    "181445"
  ],
  "clipHasAttachedEditorialObjectInfo": [
    "Draft;;181445"
  ],
  "clipHasAttachedEditorialObjectParentId": [
    181439
  ],
  "attachedEditorialObject": [
    "Draft_181445_My Very First Draft"
  ]
}

Detach a clip

POST /production/{prId}/eo/{id}/detach

Query for detaching the from the collection.

Details
Description

We expect the id(s) of the media object annotations in the request body.

Parameters
Path Parameters
Name Description Required Type

prId

ID of the production.

✔

Long

id

ID of the collection.

✔

Long
Body Parameters
Name Description Required Type

long

IDs of one or more media object annotations to be detached.

✘

List of long

long

Return Type

EditorialObject

The EditorialObject this request is for.

Field Name Required Type Description Format

abstract

✘

String

alternativeTitle

✘

String

Can contain a second title (with the title field being the primary title)

category

✘

String

categoryId

✘

Long

The id of the category we belong to

int64

created

✘

Date

The time when this resource was created

date-time

createdBy

✘

String

The request or process that created this resource

creatorId

✘

Long

The id of the user who created this resource

int64

customFields

✘

CustomFields

description

✘

String

Plain text description

extent

✘

String

funnel

✘

String

Field which can be interpreted as a subtype (besides objectType). Only the objectType determines the structure of the EditorialObject, the funnel does not. It is meant for applications to indicate the EditorialObject is to be interpreted in a specific way.

id

✔

Long

The id of this resource

int64

includeCategoryName

✘

Boolean

includeChildren

✘

Boolean

includeEdl

✘

Boolean

includeParent

✘

Boolean

lastUpdated

✘

Date

The time when this resource was last updated

date-time

modifiedBy

✔

String

The request or process responsible for the last update of this resource

objectType

✘

String

The data model type or class name of this resource

parent

✘

EditorialObject

parentId

✘

Long

The id of the parent EditorialObject

int64

productionId

✘

Long

int64

status

✘

String

Status of the EditorialObject. Application-specific implementation.

subObjects_index

✘

Integer

Order of this EditorialObject inside its parent. Gaps are allowed.

int32

systemFields

✘

CustomFields

title

✘

String

Contains the primary title of the EditorialObject.

version

✔

Long

The version of this resource, used for Optimistic Locking

int64
Content Type

  • application/json

Responses
Table 7. http response codes
Code Description Datatype

200

The request was successful.

EditorialObject

403

The user needs PRODUCTION_VIEW rights and the collection needs VIEW rights.

ForbiddenError

404

The production or editorial object was not found.

NotFoundError

Moving EditorialObjects around

EditorialObjects can be moved around between parent EditorialObjects or Categories.

Move a root EditorialObject to a different Category

PUT /production/{prId}/eo/{id}/category

Update of collection category is a potential heavy call, so a number of pre-flight checks are performed. When nothing needs to be done, e.g. the category is already at the given id, a 204 response is returned. Note that only the category of a root-collection (Episode, Story, Notebook) can be altered. We expect only the id of the target category in the request body.

Details
Description

If all pre-flight checks pass, a workflow is created and a 202 Accepted is returned with the workflow details in the body. The location header contains the url at which the status of the workflow can be checked.

Parameters
Path Parameters
Name Description Required Type

prId

ID of the production.

✔

Long

id

ID of the collection.

✔

Long
Body Parameters
Name Description Required Type

body

ID of the new category.

✔

Long

body

Field Name

Required

Type

Description

Format
Return Type

WorkflowMinWrapper

Field Name Required Type Description Format

accountId

✘

Long

int64

completed

✘

Long

int64

created

✘

Long

int64

errorReports

✘

List of TaskReport

href

✘

String

hrefs

✘

Map of Href

id

✘

String

label

✘

String

mediaObjectId

✘

Long

int64

objectType

✘

String

productionId

✘

Long

int64

publishedFiles

✘

List of object

requiredRights

✘

List of ProductionPermission

serverTime

✘

Date

date-time

status

✘

String

Enum: Inited, Started, Completed, Error, Cancelled, Paused, CompletedPending, ErrorPending, WaitForCallback, Scheduled,

taskReports

✘

List of TaskReport

tasks

✘

List of TaskAssignmentMinWrapper

userId

✘

Long

int64

workflowCompleted

✘

Date

date-time

workflowFailed

✘

Date

date-time

workflowId

✘

String

workflowStarted

✘

Date

date-time
Content Type

  • application/json

Responses
Table 8. http response codes
Code Description Datatype

200

The request was successful.

WorkflowMinWrapper

202

Accepted. A workflow is created.

WorkflowMinWrapper

204

The editorial object is already in the provided category.

GenericJson

403

The user needs PRODUCTION_MANAGE rights and the collection needs VIEW rights.

ForbiddenError

404

The production or editorial object was not found.

NotFoundError

This call will start a Workflow. See this page to learn how to wait for the workflow to complete.

Move a child EditorialObject to a different parent

PUT /production/{prId}/eo/{id}/parent

Update of collection parents is a potential heavy call, so a number of pre-flight checks are performed. When nothing needs to be done, e.g. the parent is already at the given id, a 204 response is returned. When validation fails, e.g. the type of the target parent does not matches the current parent, a 400 Bad Request is returned. Note that only the parent of a sub collection (Scene, StoryPart, Draft) can be altered. We expect only the id of the target collection in the request body.

Details
Description

If all pre-flight checks pass, a workflow is created and a 202 Accepted is returned with the workflow details in the body. The location header contains the url at which the status of the workflow can be checked.

Parameters
Path Parameters
Name Description Required Type

prId

ID of the production.

✔

Long

id

ID of the collection.

✔

Long
Body Parameters
Name Description Required Type

body

ID of the new parent.

✔

Long

body

Field Name

Required

Type

Description

Format
Return Type

EditorialObject

The EditorialObject this request is for.

Field Name Required Type Description Format

abstract

✘

String

alternativeTitle

✘

String

Can contain a second title (with the title field being the primary title)

category

✘

String

categoryId

✘

Long

The id of the category we belong to

int64

created

✘

Date

The time when this resource was created

date-time

createdBy

✘

String

The request or process that created this resource

creatorId

✘

Long

The id of the user who created this resource

int64

customFields

✘

CustomFields

description

✘

String

Plain text description

extent

✘

String

funnel

✘

String

Field which can be interpreted as a subtype (besides objectType). Only the objectType determines the structure of the EditorialObject, the funnel does not. It is meant for applications to indicate the EditorialObject is to be interpreted in a specific way.

id

✔

Long

The id of this resource

int64

includeCategoryName

✘

Boolean

includeChildren

✘

Boolean

includeEdl

✘

Boolean

includeParent

✘

Boolean

lastUpdated

✘

Date

The time when this resource was last updated

date-time

modifiedBy

✔

String

The request or process responsible for the last update of this resource

objectType

✘

String

The data model type or class name of this resource

parent

✘

EditorialObject

parentId

✘

Long

The id of the parent EditorialObject

int64

productionId

✘

Long

int64

status

✘

String

Status of the EditorialObject. Application-specific implementation.

subObjects_index

✘

Integer

Order of this EditorialObject inside its parent. Gaps are allowed.

int32

systemFields

✘

CustomFields

title

✘

String

Contains the primary title of the EditorialObject.

version

✔

Long

The version of this resource, used for Optimistic Locking

int64
Content Type

  • application/json

Responses
Table 9. http response codes
Code Description Datatype

200

The request was successful.

EditorialObject

202

Accepted. A workflow is created.

WorkflowMinWrapper

204

The editorial object is already in the provided category.

GenericJson

403

The user needs PRODUCTION_MANAGE rights and the collection needs VIEW rights.

ForbiddenError

404

The production or editorial object was not found.

NotFoundError

This call will start a Workflow. See this page to learn how to wait for the workflow to complete.

Custom Fields on Editorial Objects

Although Limecraft Flow already has a lot of built-in fields, it is often useful to be able to define your own fields, relevant to your use case.

Custom Fields can be used to attach custom metadata properties to an EditorialObject.

CustomFieldsDescription: Setting up custom fields

The structure and presence of custom fields can be defined and limited by using CustomFieldsDescriptions.

CustomFields also exist on the Annotation level. That is documented here.

Each time a custom field is updated or created on an EditorialObject, that field is validated against the CustomFieldsDescription of the production.

Get CustomFieldsDescription

GET /production/{prId}/eocfd

This API call retrieves the custom fields description for collections.

Details
Description
Parameters
Path Parameters
Name Description Required Type

prId

✔

Long
Return Type

CustomFieldsDescription

Field Name Required Type Description Format

allowUndefinedFields

✘

Boolean

clientSettings

✘

Object

fields

✘

Map of CustomFieldDescription

name

✘

String
Content Type

  • application/json

Responses
Table 10. http response codes
Code Description Datatype

200

The request was successful.

CustomFieldsDescription

403

The user needs PRODUCTION_VIEW rights.

ForbiddenError

404

The production was not found.

NotFoundError

Update CustomFieldsDescription

To make changes, save the CustomFieldsDescription.

PUT /production/{prId}/eocfd

This API call sets the custom fields description for collections.

Details
Description
Parameters
Path Parameters
Name Description Required Type

prId

✔

Long
Body Parameters
Name Description Required Type

CustomFieldsDescription

✘

CustomFieldsDescription

CustomFieldsDescription

Field Name Required Type Description Format

allowUndefinedFields

✘

Boolean

clientSettings

✘

Object

fields

✘

Map of CustomFieldDescription

name

✘

String
Return Type

CustomFieldsDescription

Field Name Required Type Description Format

allowUndefinedFields

✘

Boolean

clientSettings

✘

Object

fields

✘

Map of CustomFieldDescription

name

✘

String
Content Type

  • application/json

Responses
Table 11. http response codes
Code Description Datatype

200

The request was successful.

CustomFieldsDescription

403

The user needs PRODUCTION_MANAGE rights.

ForbiddenError

404

The production or custom field description was not found.

NotFoundError

409

The version in the update object does not match with the version stored causing an optimistic lock.

ConflictError

It is possible to update only a single field of the CustomFieldsDescription too:

PUT /production/{prId}/eocfd/{property}

__

Details
Description
Parameters
Path Parameters
Name Description Required Type

prId

✔

Long

property

✔

String
Body Parameters
Name Description Required Type

CustomFieldDescription

✘

CustomFieldDescription

CustomFieldDescription

Field Name Required Type Description Format

autocompleteExtractor

✘

String

autocompleteUrl

✘

String

blackList

✘

List of string

clientConfig

✘

Object

clipAllowed

✘

Boolean

defaultValue

✘

Object

description

✘

String

hidden

✘

Boolean

label

✘

String

multiValued

✘

Boolean

order

✘

Double

double

readOnly

✘

Boolean

requiresId

✘

Boolean

restrictedTo

✘

List of string

skipWhiteListValidation

✘

Boolean

subClipAllowed

✘

Boolean

thesaurus

✘

String

type

✘

String

Enum: STRING, BOOLEAN, INTEGER, DATE, DOUBLE, LONG, JSON, TEXT, FRAME, COMPOUND, FLOW_ID, FLOW_OBJECT,

userProperties

✘

Map of string

validation

✘

String

whiteList

✘

List of string
Return Type

CustomFieldsDescription

Field Name Required Type Description Format

allowUndefinedFields

✘

Boolean

clientSettings

✘

Object

fields

✘

Map of CustomFieldDescription

name

✘

String
Content Type

  • application/json

Responses
Table 12. http response codes
Code Description Datatype

0

default response

CustomFieldsDescription

Setting the value of a custom field

Once the CustomFieldsDescription is set up, you can start saving values to them.

For setting the value of a customField on a collection, the API call should go to

PATCH /api/production/7238/eo/418368

[
    {
        "op": "add",
        "path": "/customFields/author",
        "value": {
            "type": "STRING",
            "label": "author",
            "multiValued": false,
            "values": [
                "John Irving"
            ]
        }
    }
]
